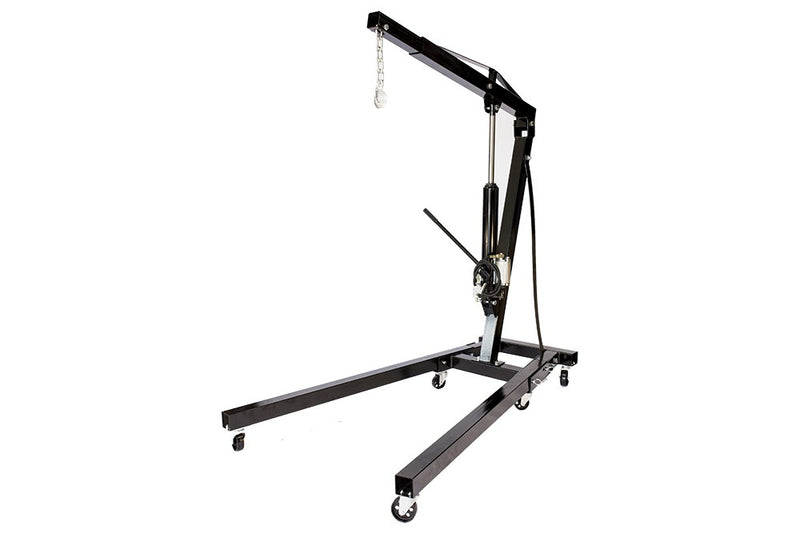

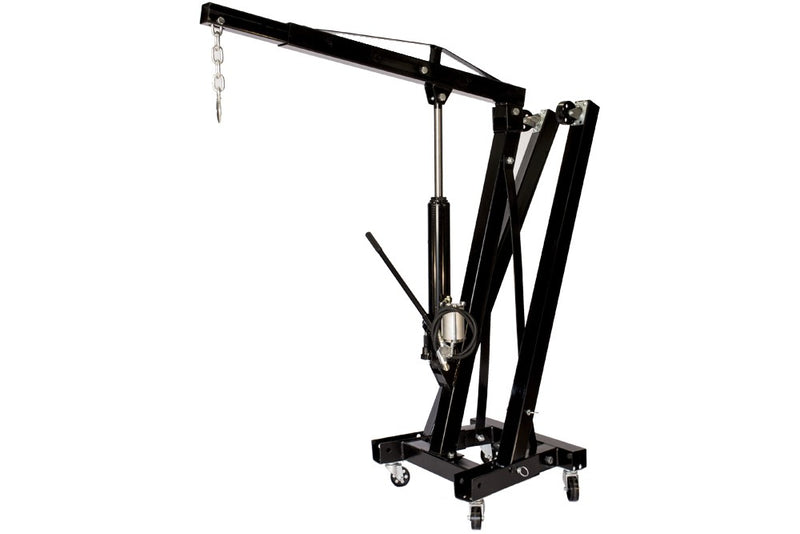

WIMMER SC2A
Air powered engine crane, workshop crane up to 2 tons, shop crane
- Color: Black / Red
| Technical specifications |
| Model: |
SC2A
|
| Max .carrying capacity : |
2 tons / 2000 kg |
| Max. lifting height :
| 210 cm |
| Lift arm length: |
100 - 156 cm (in 18 cm
step adjustable)
|
(2 ton - 1.5 ton - 1 ton - 0.5 ton)
|
| Steering wheels large Ø xB : |
4 *8.5*3cm
|
| Steering wheels small Ø xB : |
2*7*3cm |

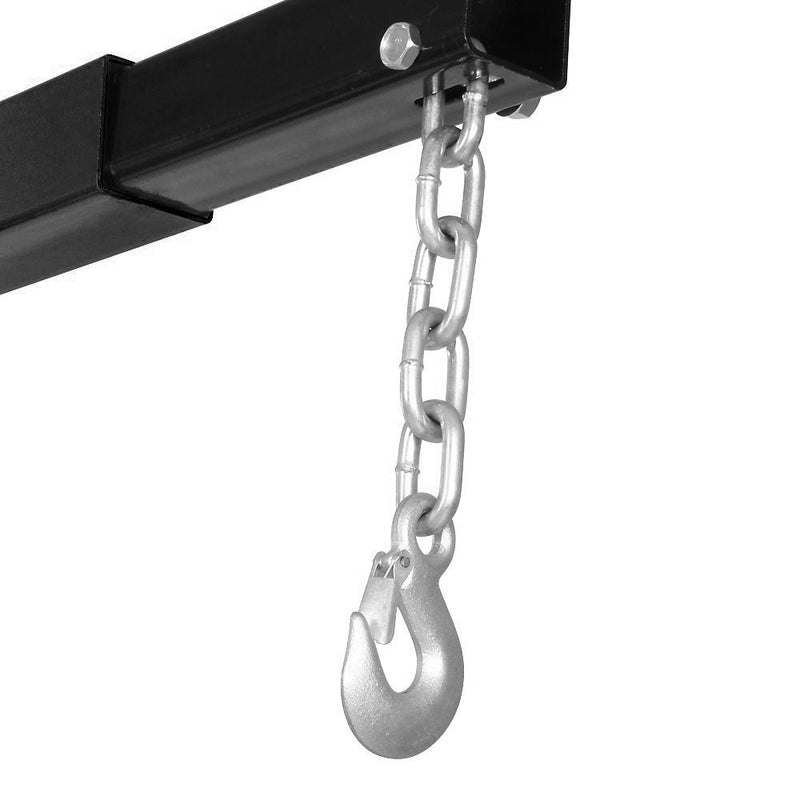

| chain length:
| 22 cm |
| cylinder stroke: |
490mm |
| Cylinder capacity: |
8 tone |
| weight
| 74kg _ |
| The shipment consists of 3 packages: |
| Package 1/3 (cm)
| 145x25x15 (28kg) |
| Package 2/3 (cm) |
68x60x8 (24kg)
|
| Package 3/3 (cm) |
103x30x12 (22kg) |
|

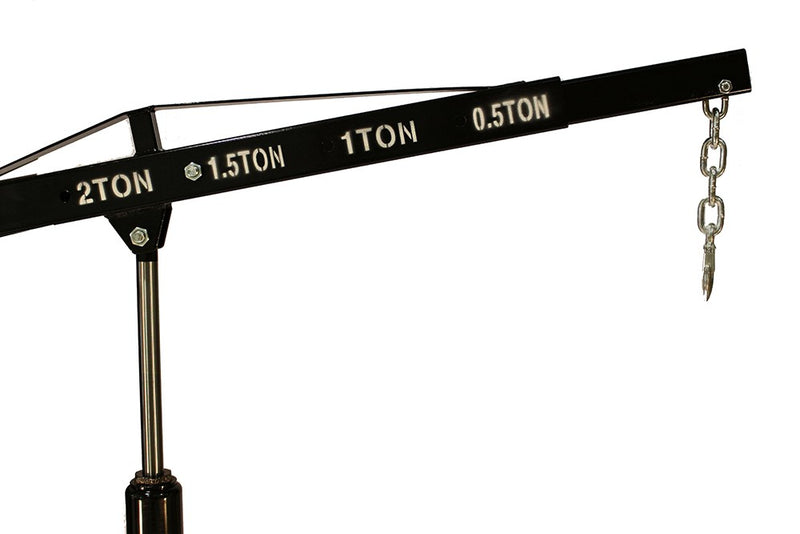

- 4-way adjustable load arm
(2000kg - 1500kg - 1000kg - 500kg)
- Foldable to save space - steering wheels

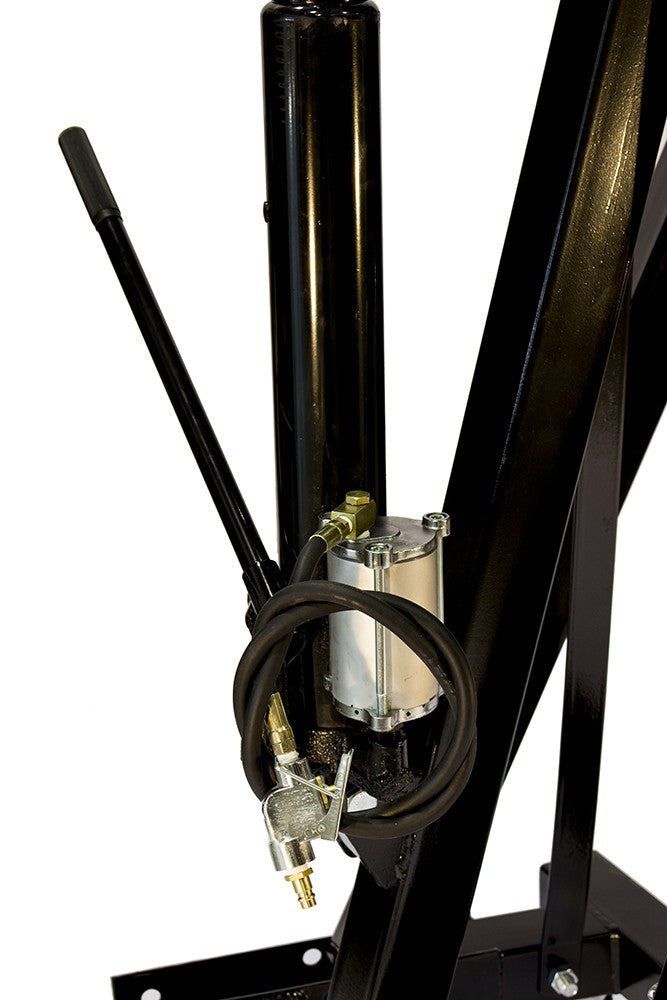

- Pneumatic drive
- Color: Black / Red
|
|
