HYDRAFORE YG-3050K
Hollow piston cylinder
- Cylinder working range: max. 30 tons pressure
- Piston stroke: 50 mm
- HH-2/M coupling sleeve is included in the price.

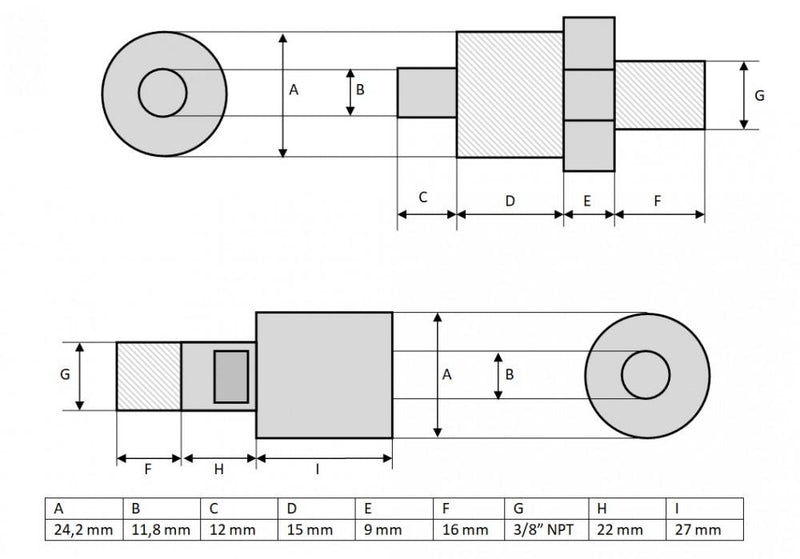

- Hydraulic sleeve type: HH-2/M
- Connection thread: 3/8" NPT
- This cylinder has return spring.
- Material: steel
- Recommended pump: B-700
| Technical parameters: | |
| Model: | YG-3050K |
| Pressure force: | 30 d |
| Hub: | 50mm |
| Oil volume: | 239cm3 |
| Recommended pump: | B-700 |
| Weight: | 11kg |
| Shipping volume: | 17x12x20cm |

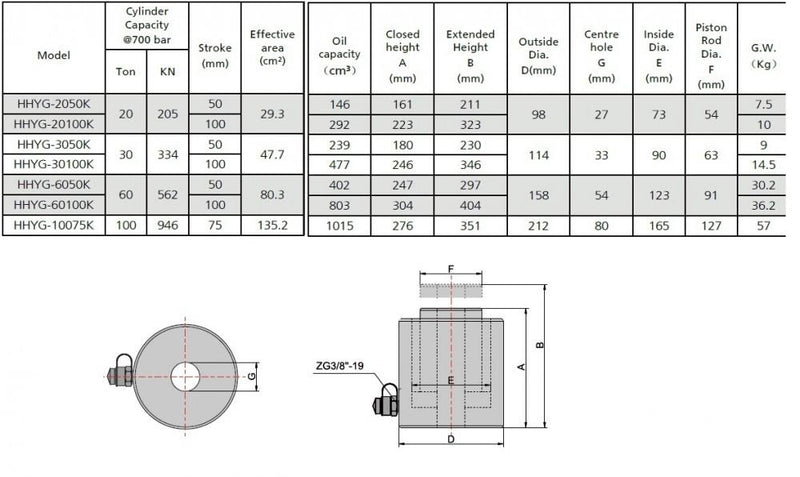

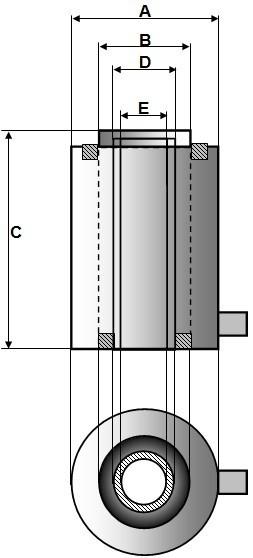

| A | 114mm |
| b | 63mm |
| C | 180mm |
| D | 46mm |
| E | 33mm |
