HYDRAFORE YG-10075K
Hollow cylinder (100 ton, 75 mm)

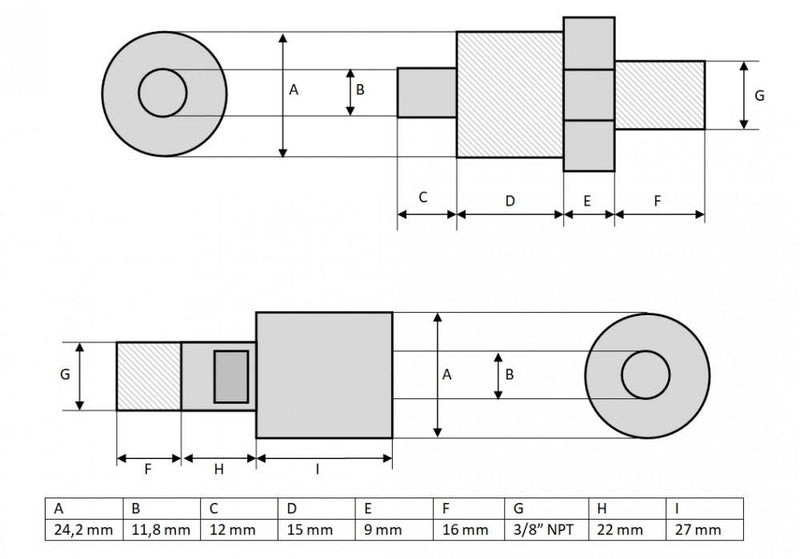

- HH-2/M coupling sleeve is included in the price.
- Type of hydraulic sleeve: HH-2/M
- Connection thread: 3/8" NPT
- This cylinder has a return spring.
- Material: steel

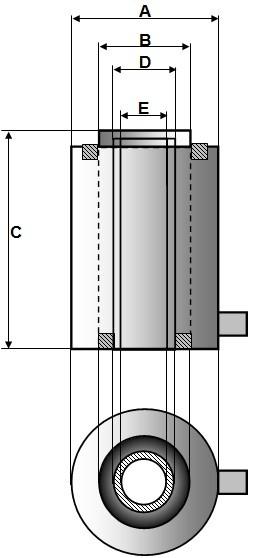

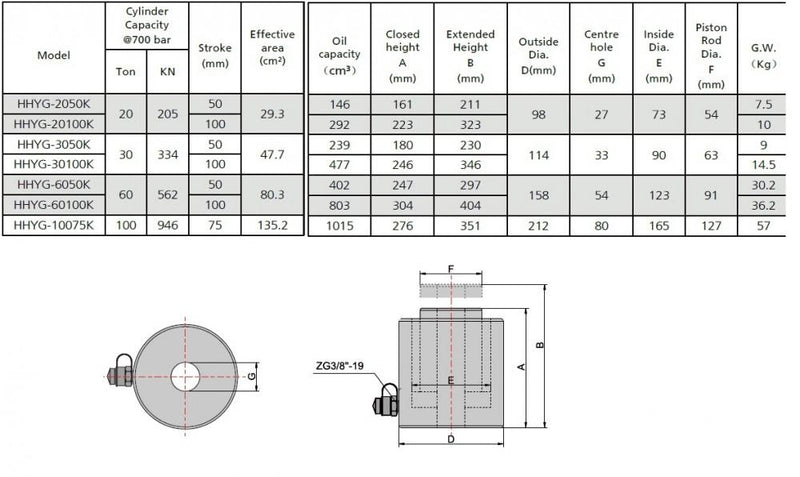

| Technical parameters: | |
| Model: | YG-10075K |
| Compressive force: | 100 T |
| Hub: | 75 mm |
| Oil volume: | 1015 cm3 |
| Height: A | 276 mm |
| Height extended: B | 351 mm |
| Outer diameter: D | 212 mm |
| Inner diameter: E | 165 mm |
| Piston diameter: F | 127 mm |
| Bore: G | 80 mm |
| Recommended pump: | B-700A |
| Weight: | 57.0 kg |
| Shipping volume: | 30x40x35 cm |
