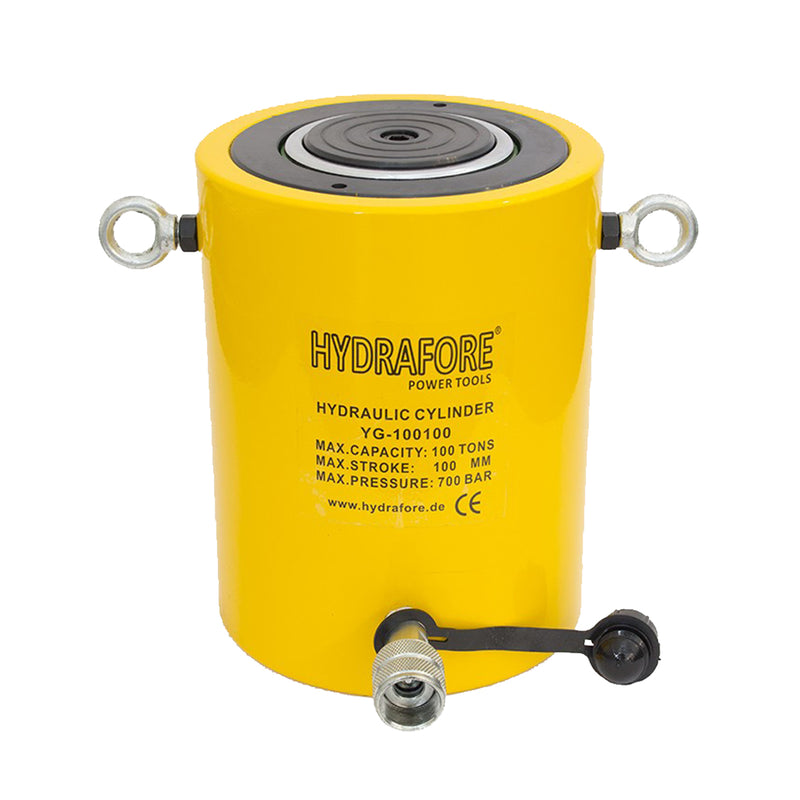

Single Acting Hydraulic Cylinder (100 Ton, 100mm) (YG-100100)



Tax included Shipping calculated at checkout

In stock (4 units), ready to be shipped


Single acting hydraulic cylinder (100 ton, 100 mm)

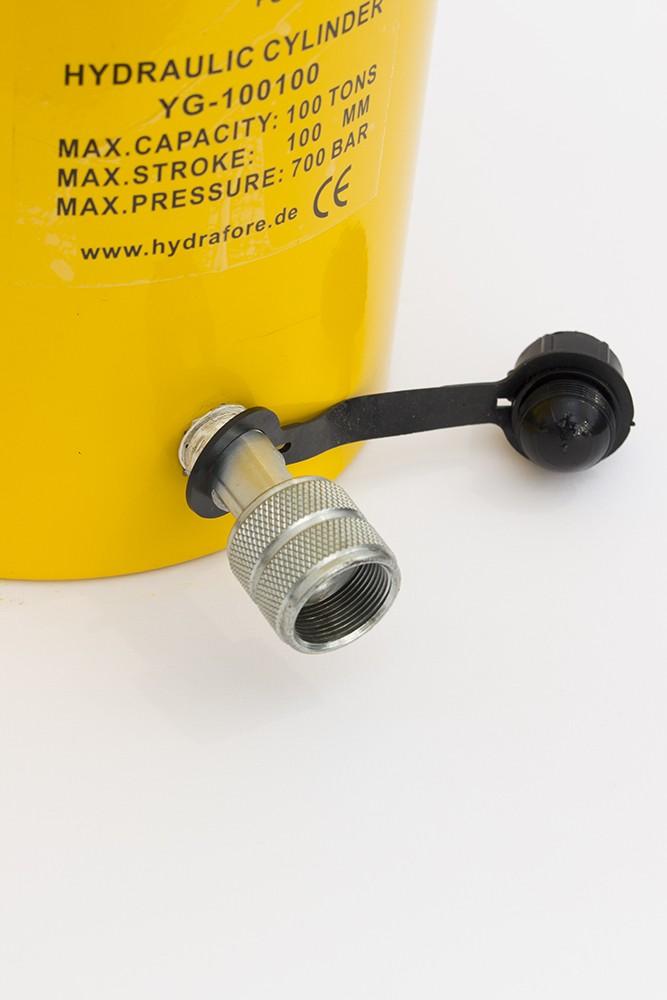

  • HH-2/M coupling sleeve is included in the price.
  • Hydraulic sleeve type: HH-2/M
  • Connection thread: 3/8" NPT
  • This cylinder has return spring.
  • Material: steel
Technical parameters:
Model: YG-100100
Pressure force: 100 T
Hub: 100mm
Oil volume: 1584cm3

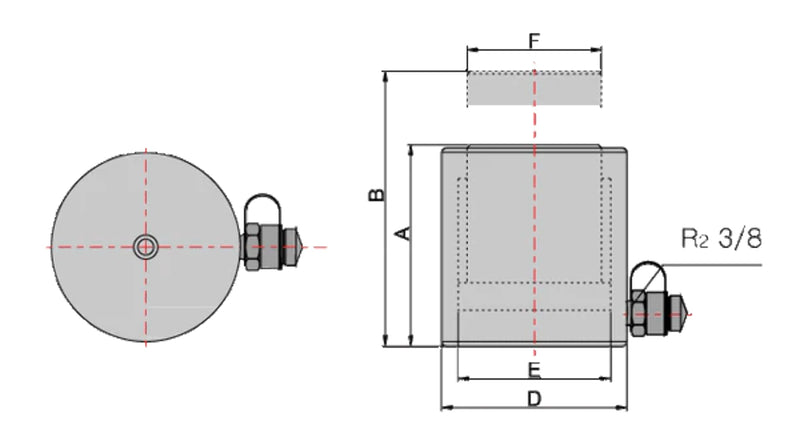

Height: A 232mm
Height extended: B 332mm
Outer diameter: D 178mm
Inner diameter: E 140mm
Piston diameter: F 100mm
Piston inner diameter: J 30.6mm
Recommended pump: B-700A
Weight: 38.0kg
Shipping volume: 35x30x30cm
