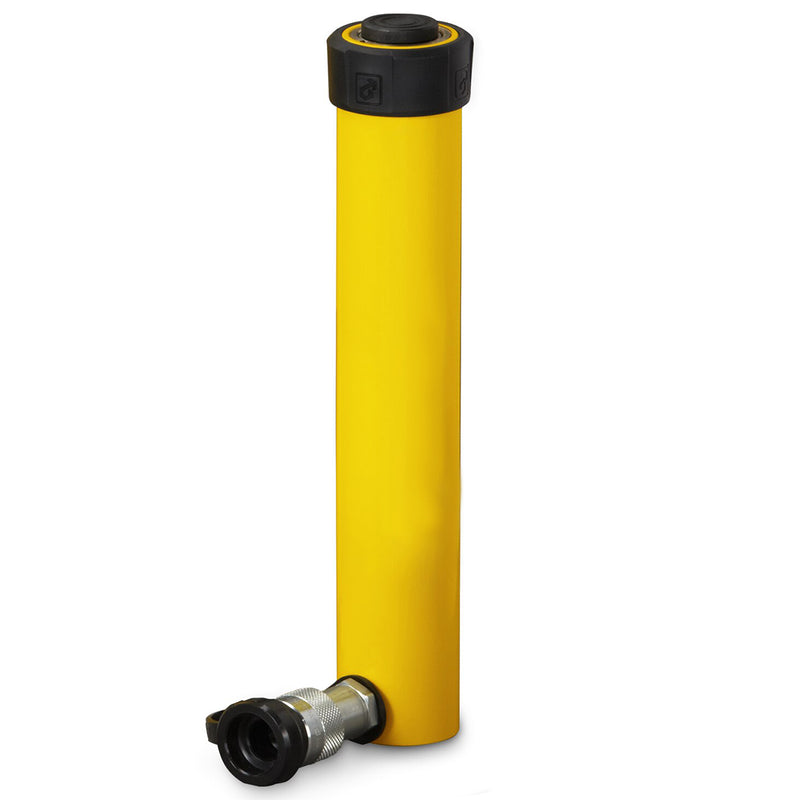

Single Acting General Purpose Hydraulic Cylinder (10T - 156mm) (SG1006)



Tax included Shipping calculated at checkout

Sold out


Single-acting general purpose hydraulic cylinder (10T - 156mm)

Max . Capacity: 10 tons

Stroke: 156mm

Maximum operating pressure: 700 bar / 10,000 psi

Unique GR2 bearing design, reduces wear and extends service life

Base mounting holes allow for easy mounting

Designed for use in all positions

High strength alloy steel for long service life

Redesigned cylinder thread protector for easy operation

A heavy, preloaded spring improves retraction speed

Baked enamel finish for increased corrosion resistance

CR400 clutch and dust cap included on all models

The piston wiper reduces pollution and extends


Technical parameters:
Model: SG1006
Pressure force: 10T
Hub: 156mm
Oil volume : 226cm3
Min. height: 247mm
Max. height: 403mm
Outer diameter: 57mm
Saddle diameter : 35mm
Thread size : 2 1/4" - 14
Weight: 10.0kg
Shipping volume: 16x16x25cm
