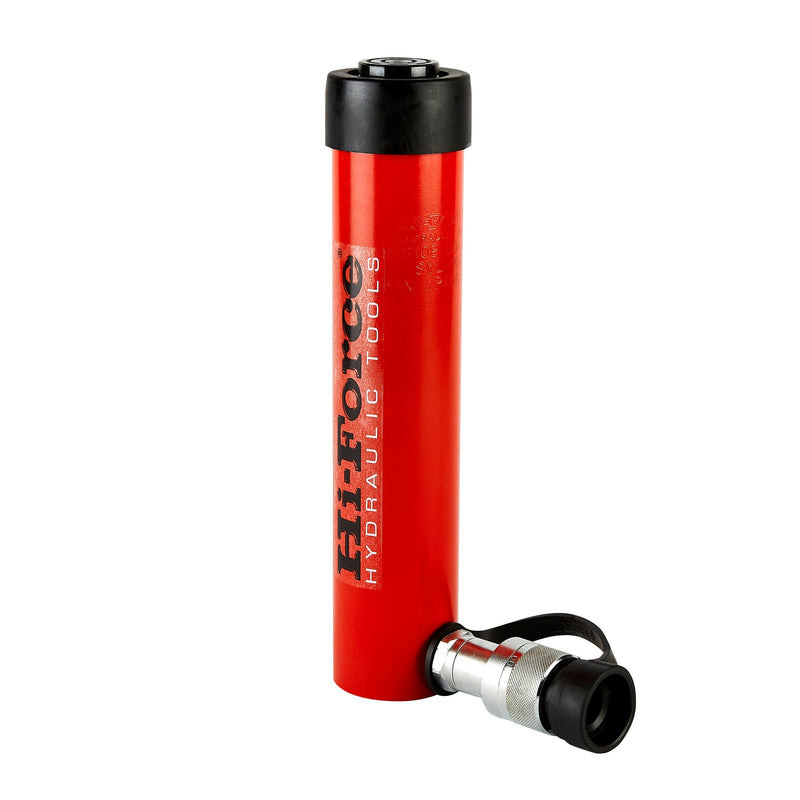

HI-FORCE HSS258
Single Acting Multi-Purpose Cylinders, General Purpose Hydraulic Cylinders (25T, 203mm)

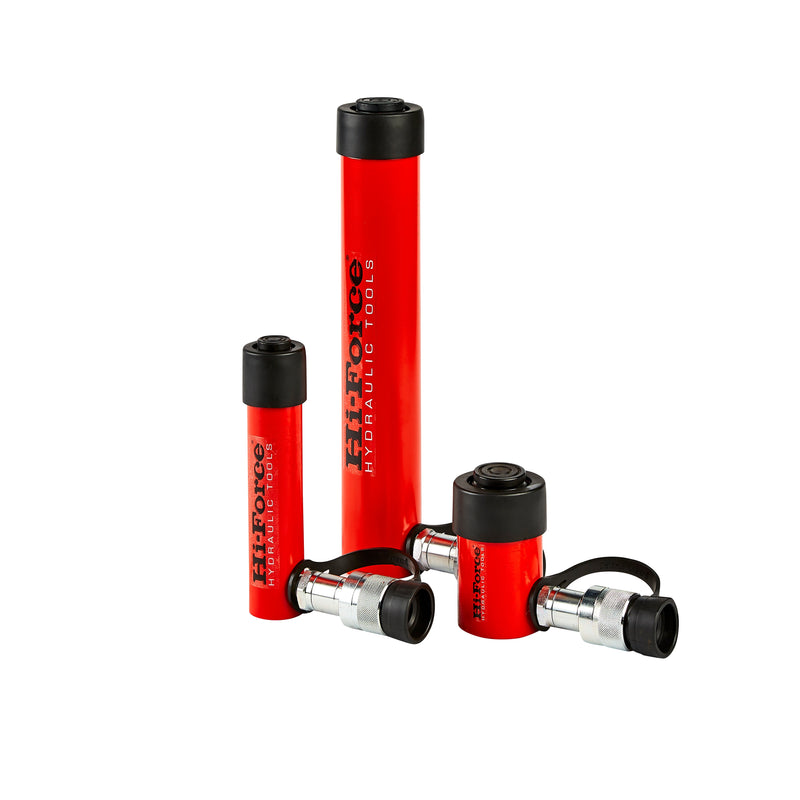

• Capacity from 4.5 to 109 tons
• Stroke length from 25 to 457 mm
• Operating pressure 700 bar
• Single acting, spring return
• Nitrocarburized piston rods for
higher corrosion protection
• Low-friction support surface
• Anti-extrusion seals for improved
Performance under high pressure loads
• Collar threads are designed for full load
• Grooved pressure pieces on all models
mounted as standard
| Technical parameters: | |
| Model: | HSS258 |
| Pressure force: | 25 d |
| Hub: | 203mm |
| Oil volume: | 709 cm3 |
| Eff. Print area: | 34.9 cm2 |
| Weight: | 11.2kg |
| Shipping volume: | 35x20x20cm |
