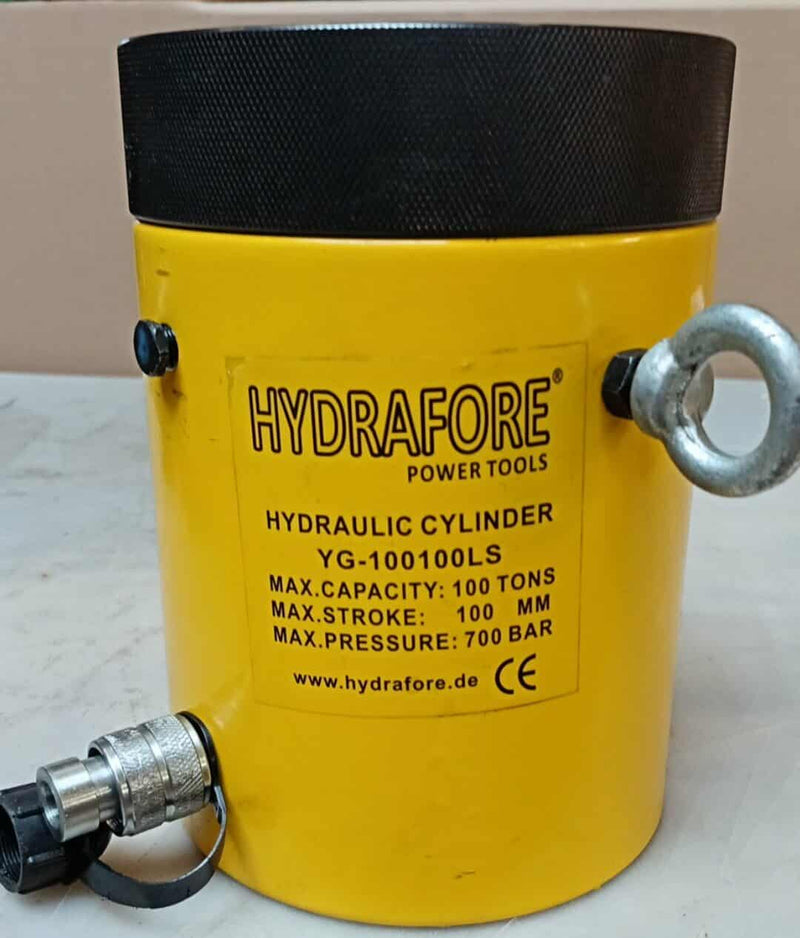

HYDRAFORE YG-100100LS B-Stock
B-stock!
Checked and cleaned. There are no surface scratches or paint damage.
There may be damage to the packaging or delivery case!
Complete scope of delivery. Full manufacturer's warranty.
Adjusting ring cylinder (100 Ton, 100 mm)
- Mechanical securing of the load possible (the cylinder can hold the load for an unlimited period of time)
- HH-2/M coupling sleeve is included in the price.
- Hydraulic sleeve type: HH-2/M
- Connection thread: 3/8" NPT
- This cylinder has return spring.
- Material: steel
| Technical parameters: | |
| Model: | YG-100100LS B-STOCK |
| Pressure force: | 100 T |
| Hub: | 100mm |
| Oil volume: | 1548 cm3 |
| Height: A | 236mm |
| Height extended: B | 336mm |
| Outer diameter: D | 168mm |
| Inner diameter: E | 135mm |
| Piston outer diameter: F | 135mm |
| Recommended pump: | B-700A |
| Weight: | 40.0kg |
| Shipping volume: | 23x23x28cm |
