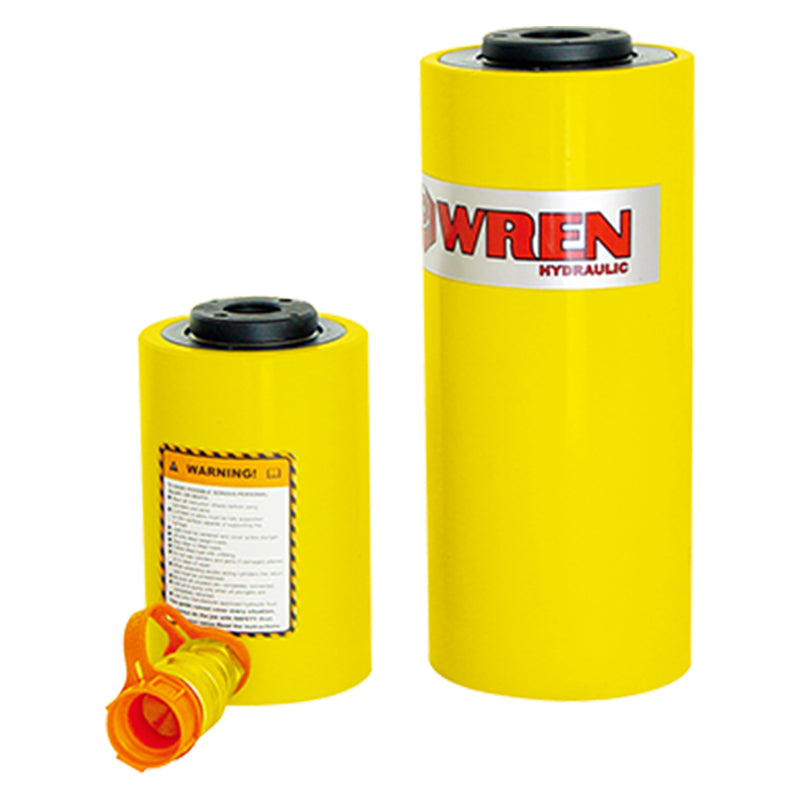

WREN SHP1200
Single-acting hollow cylinder (12T - 8mm)
️ ◊ Max . Capacity: 12 tons
️ ◊ Stroke: 8mm
️ ◊ Maximum operating pressure: 700 bar / 10,000 psi
️ ◊ Hollow piston design allows for both tensile and compressive forces
️ ◊ Single-acting and robust return spring
️ ◊ Baked enamel finish for improved corrosion resistance
️ ◊ Baked enamel finish for increased corrosion resistance
️ ◊ Collar thread for easy attachment
️ ◊ SHP1200 cylinders include a coupler and a 1/4 NPTF connector
| Technical parameters: | |
| Model: | SHP1200 |
| Pressure force: | 12T |
| Hub: | 8mm |
| Oil volume : | 15cm3 |
| Min. height: | 55mm |
| Max. height: | 63mm |
| Outer diameter: | 69mm |
| Hollow hole diameter: | 19mm |
| Piston diameter: | 35mm |
| Weight: | 1.5kg |
| Shipping volume: | 10x10x10 cm |
